K2 Smart Vending Machine Board Rockchip RK3288 Wi-Fi 802.11 b/g/n and Bluetooth 4.0

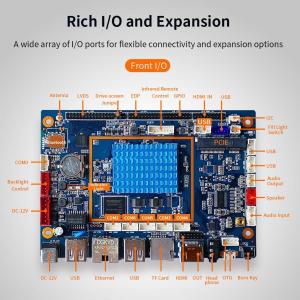

K2 Smart Vending Machine Board Description:
The K2 board is powered by Rockchip RK3368 octa-core Cortex-A53 processor, with a maximum clock speed of 1.5GHz. The PowerVR GC6110 GPU supports OpenGL ES 1.1/2.0/3.1, enabling a perfectly smooth hardware decoding of 4k and 1080p resolution videos. With a variety of on-board display interfaces, multiple I/O and expansion options, as well as a rich set of development kits, this board can be quickly applied to the vending machine sector.
Smart Vending Machine Board Parameters:
| Keyword: | Smart Vending Machine Board | CPU: | Rockchip RK3368 octa-core Cortex-A53@1.5GHz |
|---|---|---|---|
| System Memory: | 1GB/2GB DDR3 | Storage: | 16GB eMMC(128GB Max) |
| USB Host: | USB 2.0 ports (2 Ext. + 4 Int.) | HDMI: | HDMI2.0, up to 4k resolution |
| Android: | 5.1 (recommended), 6.0 (optional) | Serial Port: | 1x TTL/RS-232, 1x TTL/RS-232/RS-485, 4x TTL/RS-232 expansion ports |
K2 Smart Vending Machine Board Features:
Processor: The K2 smart vending machine board is equipped with a Rockchip RK3368 octa-core Cortex-A53 processor, with a maximum clock speed of 1.5GHz, offering powerful computing capabilities.
Graphics Processing: It features a PowerVR GC6110 GPU, supporting OpenGL ES 1.1/2.0/3.1, and is capable of hardware decoding 4K and 1080p resolution videos, ensuring smooth display performance.
Display Interface: Supports LVDS and EDP for 1080p FHD decoding support, allowing connection to various display devices.
Wireless Connectivity: Features Wi-Fi 802.11 b/g/n and Bluetooth 4.0 for wireless network connections and data transfer.
USB Ports: Provides 2 external and 4 internal USB 2.0 ports for easy connection to various external devices.
Storage and Memory: Equipped with 128GB ROM and 2GB RAM, offering ample storage space and operational memory.
Expansion Capability: Includes a Mini PCIe port and a 4G expansion module, enhancing the board's expandability.
Network Interface: Offers 1 10/100Mbps Ethernet port for wired network connections.
Serial Communication Ports: Provides 6 RS-232 serial ports and 1 optional RS-485 serial port for easy connection to various serial devices.
Size Design: The motherboard has dimensions of 135mm x 93mm, designed compactly for easy integration into vending machines.
Ultra-thin Design: The motherboard features an ultra-thin 9mm design, saving space and facilitating easy installation.
